Overview
AplusLCD shelf edge displays are ultra-wide LCD screens built to sit directly on the retail shelf rail, replacing paper price tags, printed shelf talkers, and static promotional strips with live digital pricing. The format matters more than the screen: a 16:1.3 bar occupies the narrow strip of space above the product without covering the merchandise beside it, which is why standard 16:9 signage never worked on a shelf. Our 23.1" and 48.0" bar platforms are already running in supermarkets, convenience chains, electronics retailers, and pharmacies across North America, Europe, and the Middle East, where pricing updates are pushed from the POS or pricing server instead of being reprinted by hand.
Common Retail Shelf Edge Display Problems — and How We Specify Around Them
What we specify: Push prices straight from the POS or pricing server over the Android CMS, so a price change reaches the shelf without anyone walking the aisle. It also removes the shelf-versus-checkout price mismatch that draws regulatory attention in several markets.
What we specify: Use a bar format — 16:1.3 (23.1", 1920×158) for grocery and pharmacy shelving, 32:6 (48.0", 3840×720) for wider promotional bays and end caps. The format is what makes a screen survivable on a shelf rail.
What we specify: We cut the glass in-house from 8.8" to 86" at any aspect ratio, so the unit is matched to your rail profile and available depth instead of forcing a redesign of the shelving. Send the rail profile and a photo of the aisle.
What we specify: Specify sealed cut edges. Unsealed edges are where moisture enters the panel, and that is the single most common failure in low-cost bar displays — it never shows up in a dry showroom trial.
What we specify: There is no MOQ: start with one sample to validate the rail fit and content rendering, then run a pilot of 10-50 units across one aisle or one store. Stock configurations ship in 10-15 days.
Why Retailers Are Replacing Paper Shelf Talkers
Paper shelf-edge labelling carries a recurring cost that is easy to underestimate: printing, distribution, and the labour of walking every aisle to swap tags, multiplied by every price change and every store. Electronic shelf edge displays remove that cycle entirely. When a price changes in the POS or pricing server, the shelf label updates with it, which also eliminates the mismatch between shelf price and checkout price that draws regulatory attention in several markets. Beyond pricing, the same screen carries promotional video, allergen and ingredient information, stock status, and QR codes that link to product detail pages — content a paper tag physically cannot hold. Retailers typically start with a single promotional aisle to measure uplift, then extend to full-store coverage once the labour saving is quantified.
Fitting a Shelf Edge Display to Standard Retail Rails

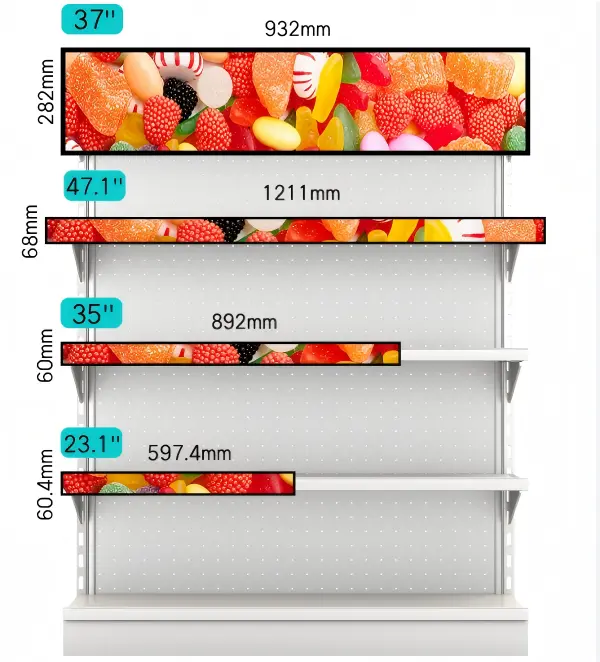

Shelf edge deployments are mechanical problems before they are display problems. The unit has to sit on the existing rail profile without protruding into the aisle, without blocking the product above it, and without a cable run that a restocker can snag. Our 23.1" platform (1920×158, 16:1.3) is the standard fit for grocery and pharmacy shelving, while the 48.0" platform (3840×720, 32:6) suits wider promotional bays and end-cap positions. Where neither matches your rail, we cut custom sizes from 8.8" to 86" at any aspect ratio, and we seal the cut edges — unsealed edges are where moisture enters in chilled and fresh-food aisles, and that is the single most common failure in low-cost bar displays. Send us the rail profile and available depth, and our engineers will confirm the cut dimensions before tooling.
Content Management Across Multi-Store Rollouts
A shelf edge network is only useful if content can be changed centrally. We offer three models: USB auto-play for single-store trials, an external media player over HDMI for sites with an existing signage player, and a built-in Android mainboard with CMS for networked deployments. The Android route is what most rollouts use — it lets you schedule price and promotion changes by store, by aisle, or by time of day, push updates over the network, and confirm playback status from one dashboard instead of visiting sites. Pricing can be templated against your product master so that a price change flows to the shelf automatically rather than being re-keyed into a design tool.
Selection Parameters — What to Specify for Retail Shelf Edge
| Parameter | Specification |
|---|---|
| Screen Size | 8.8" to 86" (23.1" & 48.0" stock) 23.1" for grocery and pharmacy shelving; 48.0" for wider promotional bays and end caps; custom cut when the rail matches neither. |
| Aspect Ratio | 16:1.3 / 32:6 / any custom ratio The ratio is what lets the screen sit in the narrow strip above the product without covering the merchandise beside it. |
| Resolution | 1920×158 / 3840×720 / 1920×360 to order Choose by content: 1920×158 is enough for price and promotion text, 3840×720 for image-heavy brand content. |
| Brightness | 300-1500 cd/m² (700-1000 typical retail) 700 nits under standard ceiling lighting; 1500 under spotlights or near a window; 2500 for covered semi-outdoor. |
| Touch Options | PCAP or IR multi-touch (optional) Only worth the cost where shoppers interact — most price-only deployments are display-only. |
| Content Management | Android CMS, USB auto-play, or HDMI external player Android CMS is what makes multi-store rollouts manageable: template prices against the product master and push by store, aisle or time of day. |
| Minimum Order | No MOQ — 1 pc sample available Validate the rail fit on one aisle before committing to a store-wide rollout. |
Which AplusLCD Display Fits Your Retail Shelf Edge Project?
23.1" (1920×158) and 48.0" (3840×720) stock platforms, or cut to your rail profile at any ratio from 8.8" to 86".
View models & specifications
Built-in Android mainboard: push price and promotion changes by store, aisle or time of day from one dashboard.
View models & specifications
21.5" to 86" Full HD / 4K for promotional bays and end caps where a bar format is not enough.
View models & specifications
Cut to your rail profile and available depth with sealed edges for chilled and fresh-food aisles.
View models & specificationsNot sure which of these fits your retail shelf edge project? Send size, brightness, mounting method and site environment — our engineers return a configured quotation with pricing and lead time within 24–48 hours.
Request a QuoteApplications
Related Industry Applications
Slim, reliable display solutions for point-of-sale terminals, customer-facing screens, electronic shelf labels and retail digital signage. Android or Windows platform support.
Eye-catching large-format displays for digital OOH advertising, retail wayfinding, menu boards and dynamic content. Stretched bar LCDs and transparent LCDs for creative installations.
Frequently Asked Questions
What is the difference between a shelf edge display and an electronic shelf label (ESL)?
An electronic shelf label is a small e-paper tag that shows price only. A shelf edge LCD display is a full-colour video screen that shows price, promotion, imagery, and video, and is typically used on promotional bays, end caps, and category headers rather than on every single facings position. Many retailers run both: ESLs for per-item pricing, shelf edge LCDs for promotion and brand content.
Can shelf edge displays update prices automatically from our POS?
Yes. With the built-in Android mainboard and CMS, prices can be templated against your product master and pushed over the network, so a price change in the POS or pricing server flows to the shelf without manual re-keying. For simpler deployments, USB auto-play and external media players are also supported.
Are 700-1000 nits bright enough for supermarket lighting?
For indoor retail under standard fluorescent or LED ceiling lighting, yes — 700 nits is our typical shelf edge configuration and keeps price text legible at normal shopping distance. We specify up to 1500 nits where the shelf sits under spotlights or near a window, and a 2500-nit option for covered semi-outdoor positions.
What is the minimum order for a shelf edge display rollout?
There is no minimum order quantity. Most retailers start with a single sample to validate the rail fit and content rendering, then run a pilot of 10-50 units across one aisle or one store, and only then commit to volume. Stock configurations ship in 10-15 days.
Can you match the display to our existing shelving profile?
Yes. Send us the rail profile, available depth, and the aisle photograph, and our engineers will confirm the cut dimensions and mounting method. Because we cut the glass in-house, custom sizes from 8.8" to 86" at any aspect ratio are available without the lead time of a fully new tooling programme.
Can shelf edge displays run video and animation, not just price?
Yes — these are full-colour LCDs, so the same screen carries price text, promotional video, allergen and ingredient information, stock status and QR codes. Most retailers template the price block and schedule promotional video around it from the CMS.
How do we power and connect a run of shelf edge displays?
Most deployments run a low-voltage rail or daisy-chained power strip along the shelf. With the Android mainboard you also need data, normally provided over Wi-Fi to each unit or a wired run per bay. Send the aisle layout and we will confirm the power and data approach before you commit.
